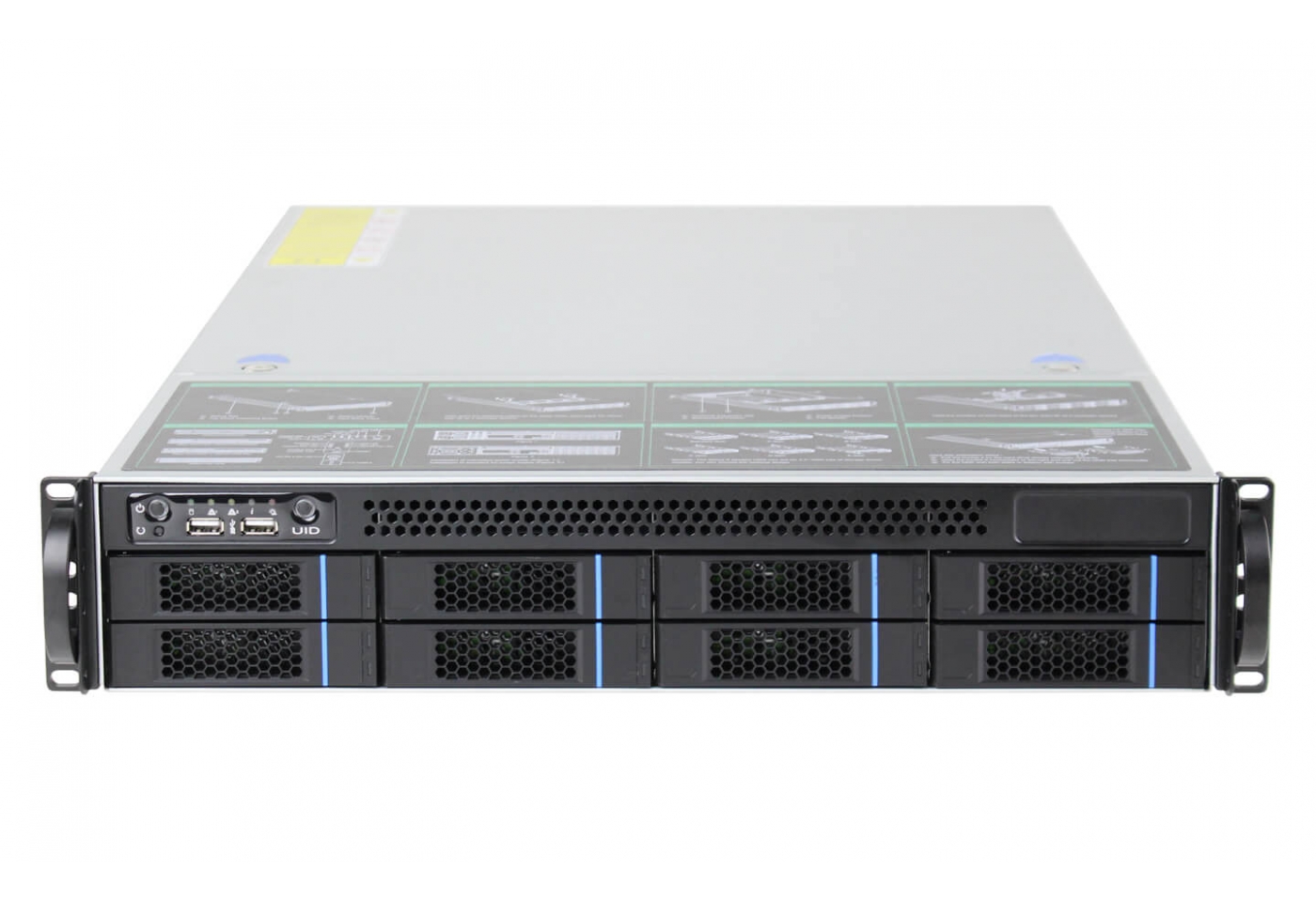

NetBytes VMS Server SRS4

NetBytes VMS Server SRS4

Configurable 2U VMS server with dual-processor capability, eight hot-swap SATA/SAS bays, hardware RAID and redundant power.

Overview

The NetBytes VMS Server SRS4 is a configurable 2U video management server designed for enterprise surveillance deployments in India. Its dual-processor-capable platform supports 2nd Generation Intel Xeon Scalable processors or newer, starting with a minimum of eight CPU cores. Memory can be configured from 16 GB to 512 GB to suit recording, management and associated surveillance workloads.

Eight hot-swappable drive bays accommodate both 3.5-inch and 2.5-inch SATA or SAS drives, enabling the storage configuration to be aligned with site retention policies and recording requirements. An included LSI Broadcom 12 Gbps RAID controller supports RAID 5, RAID 6 and RAID 10. The operating-system SSD is supplied according to customer requirements, allowing capacity and media selection to match the selected Windows or Linux environment.

Standard connectivity includes two 1GbE network interfaces and a dedicated IPMI management port. Projects that require additional network capacity can be configured with optional 10GbE RJ45 or SFP+ connectivity. Dual 800 W CRPS redundant power supplies support service continuity and simplify power-path planning in rack deployments.

The SRS4 supports deployment with leading VMS platforms, including Videonetics, i2V and Sparsh. Camera capacity is determined during solution sizing because it depends on factors such as resolution, frame rate, codec, retention period, analytics workload and the selected VMS vendor’s configuration. The standard three-year warranty can be extended to five years, providing procurement teams with a practical lifecycle option for surveillance infrastructure.

Why choose the NetBytes VMS Server SRS4

Technical specifications

Form Factor
2U rack-mount
Processor
2nd Generation Intel Xeon Scalable or newer; minimum 8 cores; dual-processor capable
Memory
16 GB to 512 GB
Storage
Operating-system SSD configured according to customer requirements
Networking
2 x 1GbE NIC; optional 10GbE RJ45 or SFP+
PSU
Dual 800 W CRPS redundant power supplies
RAID
Included LSI Broadcom 12 Gbps RAID controller; RAID 5, RAID 6 and RAID 10
Management
1 x dedicated IPMI management port
Operating System
Supports Windows and Linux
Certifications
BIS, EMI/EMC and RoHS
Drive Bays
8 x hot-swap bays supporting 3.5-inch and 2.5-inch SATA/SAS drives
Camera Support
Sized according to site requirements, stream parameters, retention policy, analytics workload and VMS vendor configuration
VMS
Supports leading VMS platforms, including Videonetics, i2V and Sparsh
Warranty
3 years standard; extendable to 5 years

Built for site-specific video surveillance deployments

Surveillance infrastructure must be sized around the actual recording design rather than a generic camera total. The NetBytes VMS Server SRS4 provides a configurable foundation for centralised VMS recording and management across commercial, institutional and public-sector environments. Its processor and memory options can be selected according to camera resolution, frame rate, codec, recording mode, retention policy and analytics workload. The platform supports leading VMS vendors such as Videonetics, i2V and Sparsh, while the final camera capacity is established in consultation with the relevant software vendor and project team. This approach helps IT managers, security integrators and procurement teams specify a server around the intended workload without relying on an unsupported universal channel count. Windows and Linux support also gives solution architects flexibility when matching the operating environment to VMS software requirements.

Flexible storage supports varied retention policies

Eight front-accessible hot-swap bays support both 3.5-inch and 2.5-inch SATA or SAS drives, giving project teams flexibility when balancing usable capacity, drive type and serviceability. The included LSI Broadcom 12 Gbps RAID controller supports RAID 5, RAID 6 and RAID 10, enabling the disk layout to be selected according to project resilience and capacity priorities. Because video retention requirements vary significantly between sites, recording drives can be configured around the required number of days, stream characteristics and recording schedule. The operating-system SSD is also specified according to customer requirements instead of being tied to a fixed capacity. This separation allows procurement teams to define the boot environment and recording pool independently. Hot-swap access helps simplify planned drive replacement, while the 2U rack format makes the platform suitable for control rooms, server rooms and central surveillance data centres.

Designed for manageable enterprise integration

The NetBytes VMS Server SRS4 includes two 1GbE interfaces for standard network integration and a dedicated IPMI port for out-of-band server management. Where a surveillance design requires additional network capacity, the system can be configured with optional 10GbE connectivity using RJ45 or SFP+ interfaces. This choice helps infrastructure teams align the server with existing copper or fibre network architecture. Dual 800 W CRPS redundant power supplies provide two power modules for deployment with suitable rack power paths. The server carries BIS, EMI/EMC and RoHS compliance marks as stated for the product. A three-year standard warranty supports normal procurement cycles and can be extended to five years for longer deployment plans. Together, these features give sysadmins and security integrators a practical platform for rack-based VMS projects while preserving configuration flexibility at the quotation and solution-design stages.
